Description

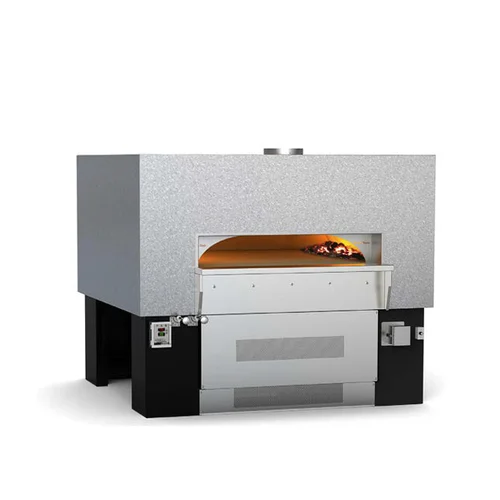

Introducing the Coal-Fired Fire Deck 9690 oven, a culinary powerhouse designed to elevate your cooking experience to unprecedented levels. Boasting a generously sized door opening measuring 60 inches wide by 10 inches high, this oven offers easy access to its expansive cooking surface, which spans an impressive 68 inches wide by 77 inches deep, providing a total cooking area of 36 square feet.
Crafted with precision to achieve the perfect balance of top and bottom heat, this oven excels at coal combustion, thanks to its innovative design. Featuring an air plenum beneath the deck, it ensures efficient burning of coal, while two radiant flame (RFG) burners on one side and a thermostatically controlled gas Underfloor Infrared (IR) burner beneath the deck further enhance its versatility and performance.
Built to last, the oven boasts a tensioned steel exoskeleton surrounding the hearth and dome perimeter, guaranteeing structural integrity and longevity. Wrapped in spun ceramic fiber insulation and requiring only a 1-inch side clearance to combustibles, its monolithic cast-ceramic 6-inch thick hearth and 4-inch thick dome rest securely on a painted black steel stand. The oven’s body, finished with galvanized steel on the front, top, back, and sides, exudes durability and sleekness in equal measure.
Arriving fully assembled and ETL Listed, this masterpiece of culinary engineering is ready to install, proudly crafted in the USA to the highest standards of quality and craftsmanship. For added convenience, a set of casters is included to facilitate installation (to be removed once installed). Explore a world of possibilities with custom finishes, tools, and accessories available online at , ensuring that your Coal-Fired Fire Deck 9690 oven meets your every culinary need and exceeds your highest expectations.
HEARTH CAPACITY
8″ pizzas: 48
10″ pizzas: 28
12″ pizzas: 20
16″ pizzas: 12
18″ pizzas: 6
FEATURES
Rectangular Footprint
Visible Flame
High Production
Coal and Gas-Fired
Underfloor Infrared (IR) Burner
Low Arch Wide
Facade Friendly
VENTING INFORMATION
The Fire Deck 9690-CL can be direct connected to a power-ventilated, grease-rated chimney or be vented using a Listed Type 1 exhaust hood, or a hood constructed and installed in accordance with NFPA 96 and all relevant local and national codes. This model must be vented as a solid fuel appliance. The oven must be vented in accordance with all relevant local and national codes, and in a manner acceptable to the authority having jurisdiction.
